Leírás

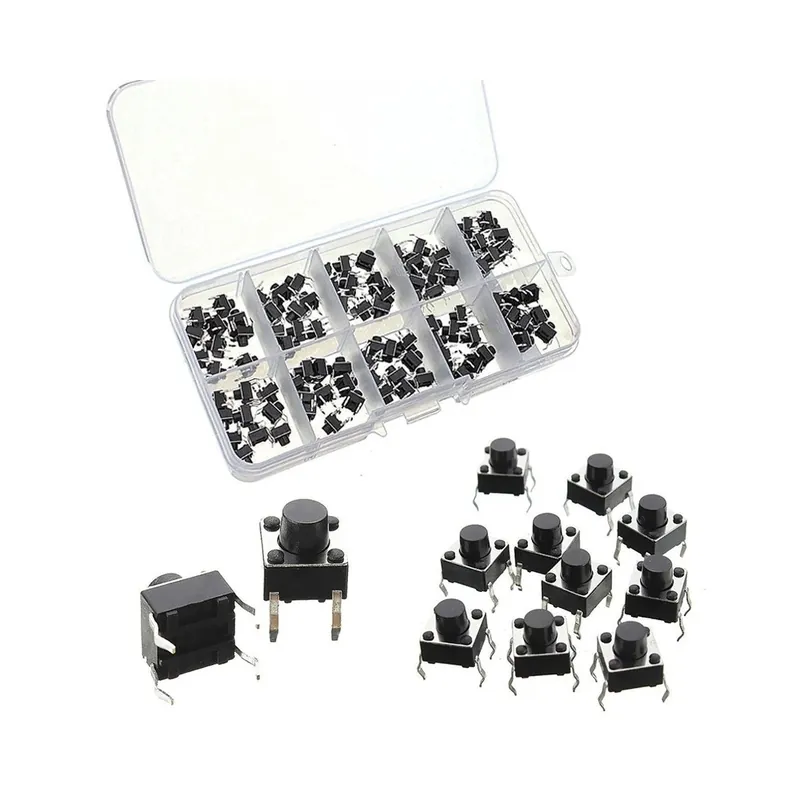

100db 4 tűs mikro tapintható nyomógombos kapcsoló pillanatnyi miniatűr Tact nyomógombos kapcsolók 6x6x5mm
100pcs 4Pin Micro Tactile Push Button Switch Momentary Miniature Tact Pushbutton Switches 6x6x5mm
Specification:
Brand new
Color: black
Size: approx. 6*6*5mm
Current Rating: 50mA
Voltage Rating: 12VDC
Insulating Resistance: >100M ohm 250V DC
Withstand Voltage: 250V AC in 1 minute
Contact Resistance:<100m ohm
Soldering Temperature: 240 deg C Max in 3 seconds
Ambient Temperature: -25 deg C ~ 70 deg C
Ambient Humidity:<85 % RH
Operating Force: 180 /- 50 gf
Mechanical Life: >100,000 Cycles
Electrical Life: >100,000 Cycles
Well welding resistance, cold resistance, heat resistance and moisture resistance
Total 100 pieces, 10 values (each 10 pieces)
Package included:
100pcs x micro tactile push button (packed with box)
Note:
Please allow 1-2mm errors due to manual measurement
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same
