5set / lot új 6V-90V 15A DC motor fordulatszám-szabályozás PWM Controller PLC kormányzó potenciométer
5set/lot New 6V-90V 15A DC Motor Speed Control PWM Controller PLC Governor Potentiometer

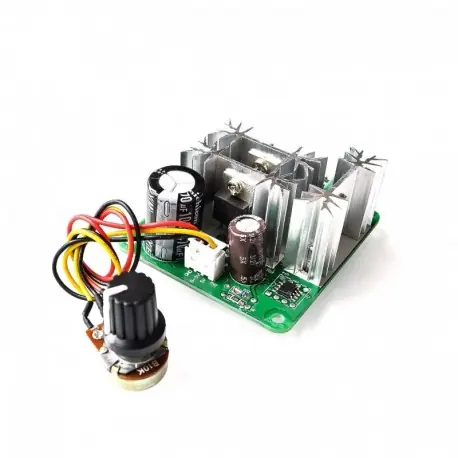

New 6V-90V 15A DC Motor Speed Control PWM Controller PLC Governor Potentiometer
Specification:
Operating voltage: DC6V-DC90V
Control Power: 0.01-1000W (Max Current:15A)
Quiescent Current: 0.05A (standby)
PWM duty cycle: 10% -100%
PWM Frequency: 13khz
1.6mm FR-4 PCB
With reverse polarity protection, High-current protection. (Fuse type 20A)
Control voltage :0 – 5v ( voltage control type , you can control the speed of the motor directly with PLC )
With a reverse connection protection, control voltage over-voltage protection, 20A fast fuses ceramic fuse
The governor can control the motor speed from 0% -100% in stepless speed changing.
Package Includes:
5x Speed Control
5x Potentiometer
