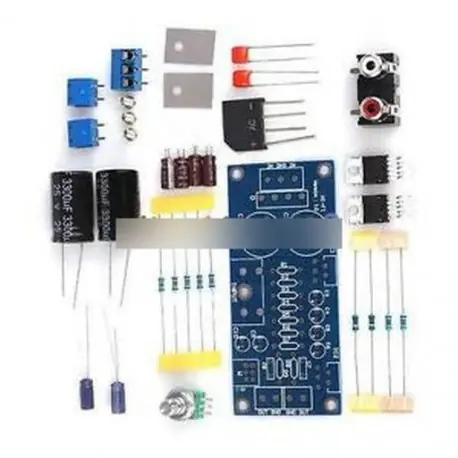

TDA2030A Audio Power Amplifier Arduino DIY Kit Components OCL 18W x 2 BTL 36W
Specification:Code disk Technical parameters:
Great PCB for Two kind of connections (OCL and BTL)
Double kneading board design
PCB Size:40mm X 92mm X 1.6mm
Power Input:2 X 12VAC
Dual-channel kit can be accessed by OCL or mono BTL circuit, flexible, wide range of applications. The famous 1% metal film resistors in China, Panasonic capacitors and Wima film capacitors, two Rubycon 3300uF/25V filter capacitors. Volume on the design board potentiometer.The circuit board design is reasonable, low noise, high performance-price ratio, is the beginner’s first choice!NO 1:For OCT Type, R4 needn’t to be connected.
For BTL Type, C9 needn’t to be connected and singnal is inputed from the right part of the RCA sockets.Package Include: 1*TDA2030A Audio Power Amplifier Module DIY Kit Components OCL 18W x 2 BTL 36W
