Leírás
Reteszelő AC 380V 16A 8 sorkapcsos kétállású bütyök kombinációs váltókapcsoló

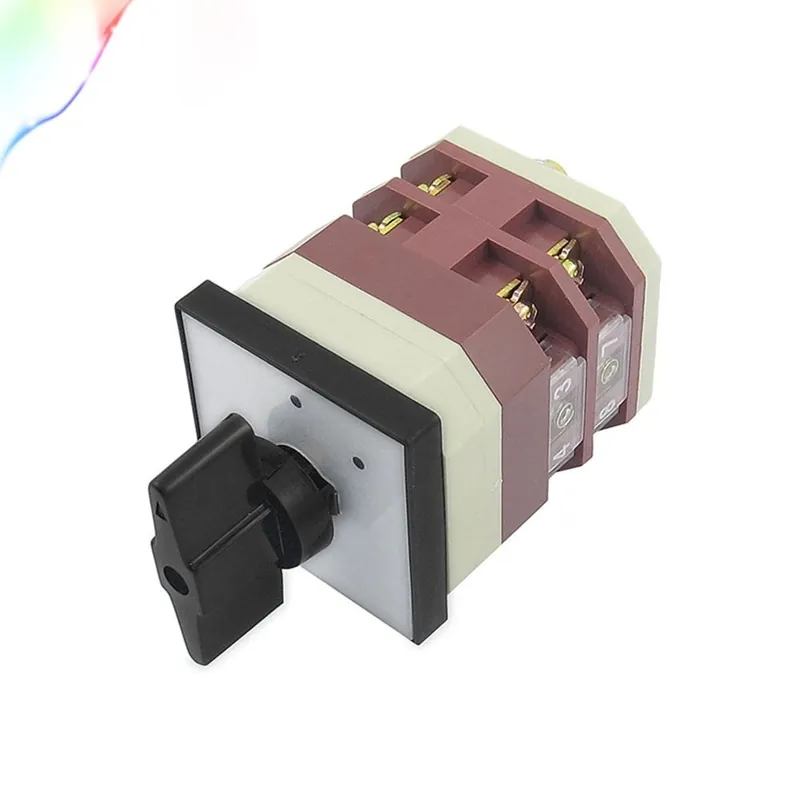

Latching AC 380V 16A 8 Terminals Two Position Cam Combination Changeover Switch
Specification:
Product Name Changeover Switch
Model No. LW12-16/C5396.2
Action Type Latching
Ui AC 380V
Ith 16A
Positions 2(ON-OFF)
Terminal Number 8
Overall Size 50x 49 x 92mm / 1.97″ x 1.9″ x 3.62″(L*W*H)
External Material Plastic
Package Content 1 x Changeover Switch
Descriptions:
Features: On – Off 2 positions control and 8 terminals design, latching action type.
The 3/4 and 7/8 terminals are closed when the position is right, 1/2 and 5/6 terminals are closed when the position is left.
Combination switch mainly suitable for electrical wiring in the power switch and mouse cage type asynchronous motor start-up, reversing, speed switches, also can make the conversion of the control circuit.
When installing this Universal Changeover Switch, professional technique is required.
