LJ12A3-4-Z/BY: PNP NO 3-Line DC type 12mm diameter , 4mm detection distance
LJ12A3-4-Z/AY: PNP NC 3-Line DC type 12mm diameter , 4mm detection distance
LJ12A3-4-Z/BX: NPN NO 3-Line DC type 12mm diameter , 4mm detection distance

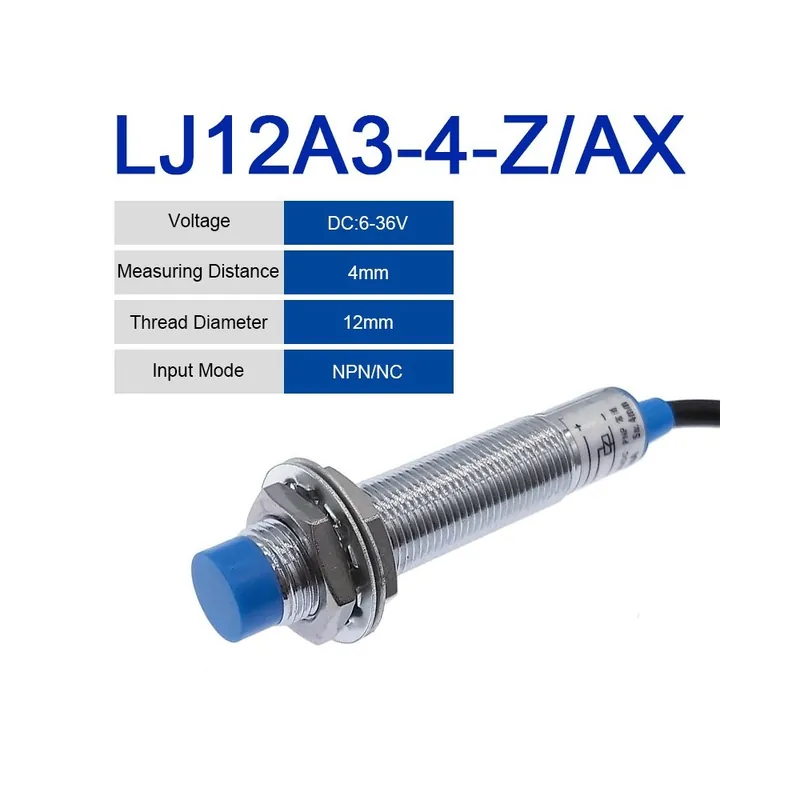

LJ12A3-4-Z/AX: NPN NC 3-Line DC type 12mm diameter , 4mm detection distance
LJ12A3-4-Z/CX: NPN NO+NC 4-Line DC type 12mm diameter , 4mm detection distance
LJ12A3-4-Z/CY: PNP NO+NC 4-Line DC type 12mm diameter , 4mm detection distance
LJ12A3-4-Z/EX: NO 2-Line DC type 12mm diameter , 4mm detection distance
LJ12A3-4-Z/DX: NC 2-Line DC type 12mm diameter , 4mm detection distance
LJ12A3-4-J/EZ: NO 2-Line AC type 12mm diameter , 4mm detection distance
LJ12A3-4-J/DZ: NC 2-Line AC type 12mm diameter , 4mm detection distance
[Main Parameter]
Detection distance :4mm ± 10%
Set distance:0~3.6mm
Current: 5V 360mA, 12V 200mA, 24V 96mA, maximum instantaneous current 2A
Delay distance:10% below of the detection distance
Detection object:Magnetic metal(the detection distance decreases when it is non-magnetic metal)
Stand detection object:Iron 15*15*1mm
Response frequency:DC:0.5kHz
Supply voltage:DC type:DC12V DC24V DC36V(5~36V)impulse(p-p)10% below
Withstand voltage:AC1000V 50/60Hz 1min between charging part and housing
Meterial:(Housing:Nickel plated brass) (Detection surface:ABS)
Protection influence:IP67(IEC specification)
This product can be applied to control relays, counters,PLC, etc.!
