Band Channael Rotary Switch 2P6T 2 pólusú, 6 pozíciós kettős pakli

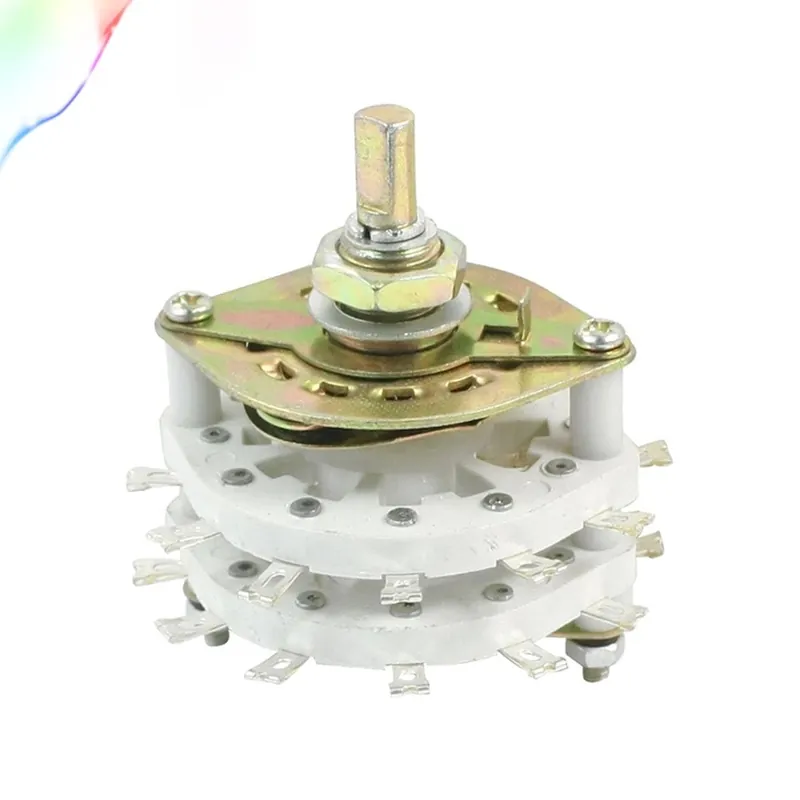

Band Channael Rotary Switch 2P6T 2 Pole 6 Position Dual Decks
Specification:
Product Name Rotary Switch
Model KCT2*6
Material Metal, Plastic
Dimensions(knob not included) 53 x 55mm / 2.1″ x 2.2″(Max.D*H)
Fit Mounting Hole Diameter 10mm / 0.4″
Shaft Diameter 6mm/0.24″
Pin Number 14
Contact Type 2 Pole 6 Position
Package Content 1 x Rotary Switch
Description:
2 Pole 6 Position dual deck design, 14 pins, 6mm diameter shaft for knob cap.
Widely used on radio, TV, LED home lights, industrial machine control unit, or other electronic devices, and it’s still a great versatile switch for applications involving multiple inputs and outputs.
