Leírás
LED PIR No Adjustable Delay Human Body Infrared Detector IR Infrared Motion Sensor Light Switch For Home AC110-240V DC 12V-24V
Features:
1. The lights are on when people come, and the lights are off when people go
2. The product is small in size and easy to connect
3. The appearance is small and easy to install
4. High safety performance
5. Scope of application: energy-saving lamps, incandescent lamps, LED lamps
Specifications:(AC110-240V)
Name: Human body infrared sensor head (high voltage type)
Working voltage: AC110-240V
Shell size: height 37.2* diameter 27.5mm
Load power: ?40w
Sensing distance: 3-5m
Sensing angle: 120°
Delay time: 30S
Working temperature: -20?-40?
Hole size: 20mm recommended
Optional function: light control model / without light control all-day induction model

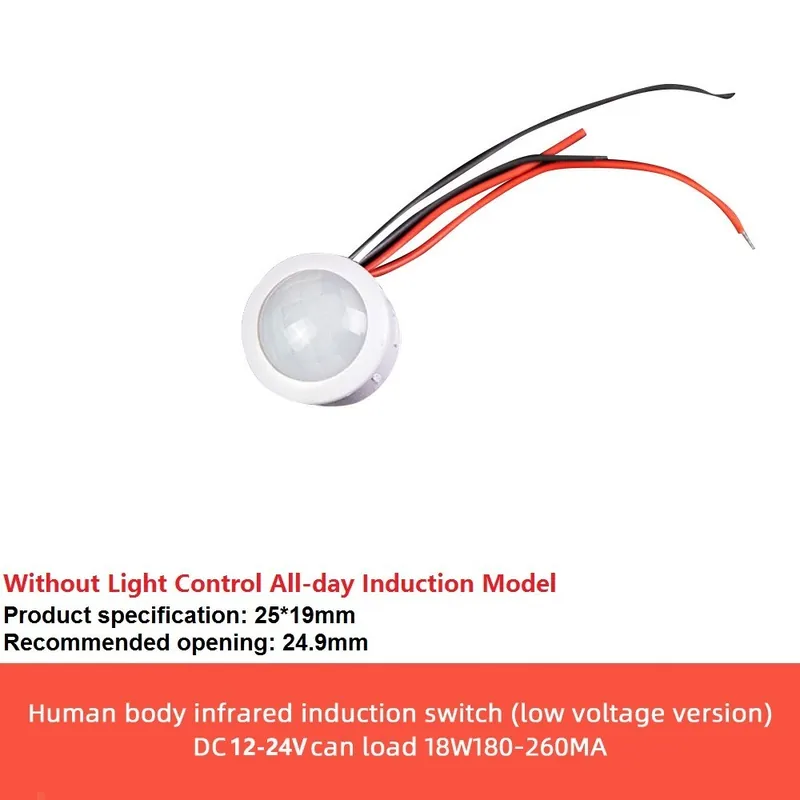

Specifications: (DC12-24V)
Working voltage: DC12-24V
Loadable: 18W 180-260mA
Product specification: 25*19mm
Recommended opening: 24.9mm
Optional function: light control model/without light control all-day induction model
Package Included:
Type A : with light control terminal line type human body sensor switch *1
Type B : with light-controlled long-line human body sensor switch*1
Type C : with light-controlled low-voltage human body sensor switch*1
Type D : without light control/all-day induction terminal line body induction switch*1
Type E : without light control/all-day induction long-line body sensor switch*1
Type F : without light control/all-day induction low-voltage type human body induction switch*1
