Leírás
40db kék 5,08 mm-es osztású csavaros kivezetések horganyzott 2 tűs PCB blokk csatlakozókészlet

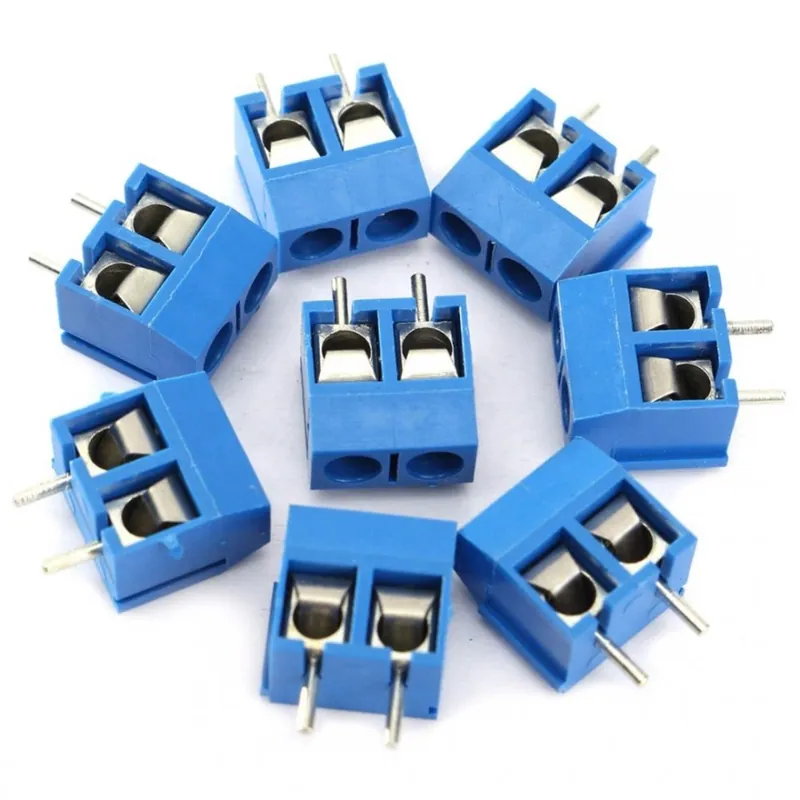

40pcs Blue 5.08mm Pitch Screw Terminals Zinc Plated 2-Pin PCB Block Connector Set
Specification:
Brand new
Screws material: M2.5 steel Zinc plated
Contact material: phosphor bronze Ni plated or stainless steel
Pin header material: Brass, Tin plated
Housing material: PBT, UL94V-0
Color: Blue
Pitch: 5.08mm
Poles: 2P
Rated voltage: 300V
Rated current: 16A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding voltage: AC1500V/1Min
Temperature range: -30℃ ~ 120℃
Max. soldering: 250℃ for 5 Sec
Torque: 0.5Nm
Feature:
An important module in the electric industry.
Fine workmanship and stable performance.
Convenient to connect wires.
Durable in use.
Package included:
40 x Terminal Blocks
Note:
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
