Leírás

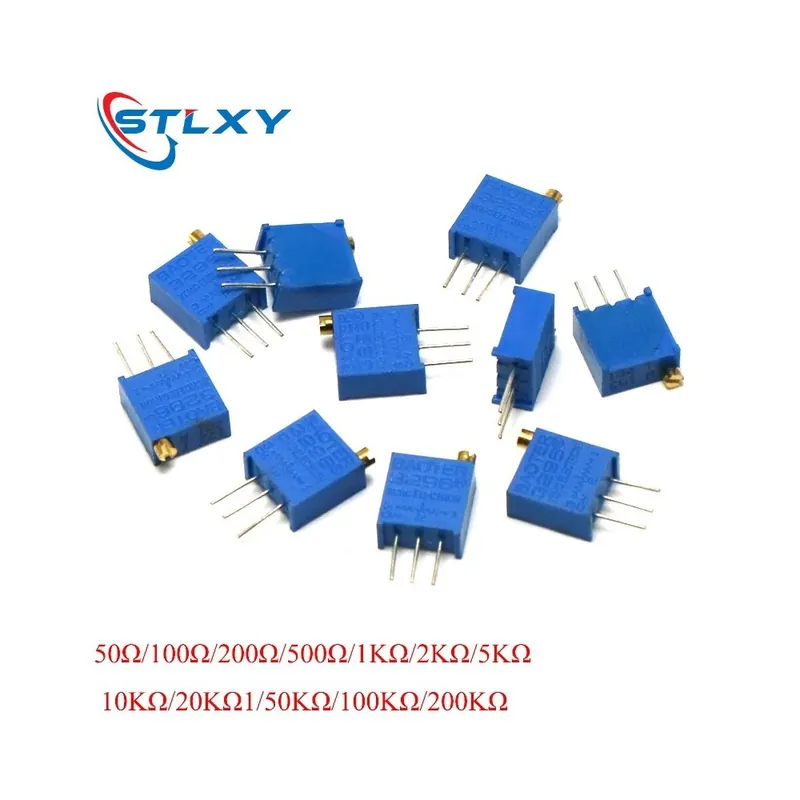

3296W multi-turn potentiometer, 13 commonly used resistance sample packages,
101=100?, 102=1K, 103=10K, 104=100K, 105=1M?
201=200?, 202=2K, 203=20K, 204=200K
501=500?, 502=5K, 503=50K, 504=500K
Resistance accuracy: ±10%
Terminal resistance: ?1% or 2R
Rated voltage: 300V
Electrical travel: 30 ± 2 laps
Rated power: 0.5W (70 ° C), 0W (125 ° C)
Working temperature: -55 ° C ~ +125 ° C
