Leírás
Miniatűr Be Ki Kis SPST billenőkapcsoló nagy teljesítményű vízálló burkolattal 12V 6 A/250 VAC 10 A/125 VAC
Miniature On Off Small SPST Toggle Switch Heavy Duty with Waterproof Cover 12V 6 A/250 VAC 10 A/125VAC
Specification:
Brand new
Switch body material: metal
Switch body color: black
Actuator color: Silver/Metal

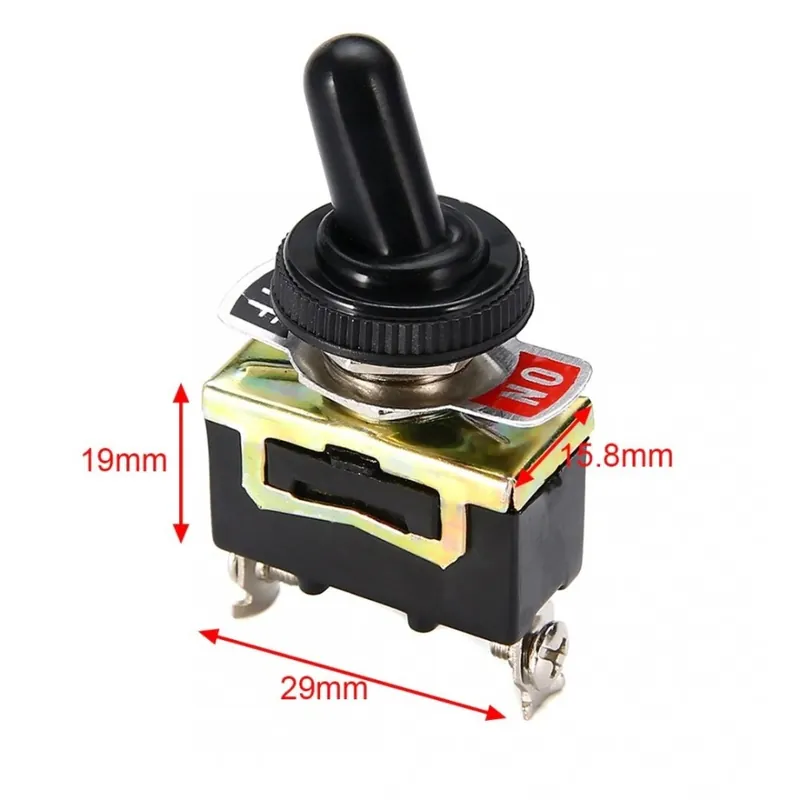

Size: approx. 29*15.8*19mm
Knob Height: approx. 17.5mm
Mounting hole diameter: approx. 12mm
Switch type: Toggle
Positions: 2-positions
Contacts configuration: SPST (single pole, single throw)
AC contact rating: 15 A/250 VAC 10 A/125VAC
DC contacts rating: n/a
Switching method: ON-OFF
Leads: M3 Screws
Operating temperature: -55~65°
Electrical life: 20000 cycles
Max. contact resistance: 50mΩ
Feature:
Heavy duty on-off switch can be used to switch the power supply to a circuit.
Fine workmanship and reliable.
Easy to install.
Durable in use.
Package included:
1 x Toggle Switch
1 x Waterproof Cover
Note:
Please allow 1-3mm errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
