A cím elején, valamint az első képen szereplő szín/minta/méret/típus kerül kiszállításra!

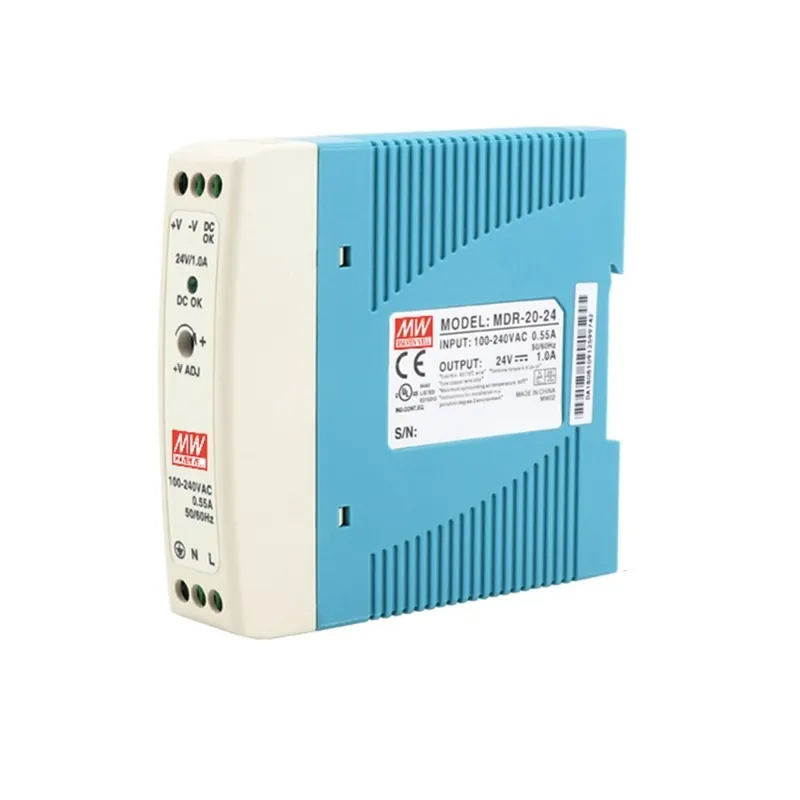

MDR-20 20W egykimenet 5V 12V 15V 24V Din sínes kapcsoló tápegység AC/DC
MDR-20 20W Single Output 5V 12V 15V 24V Din Rail Switching Power Supply AC/DC
Single output:
Power:20W
Input voltage:85~264VAC 120~370VDC
Output: 5V 3A 12V 1.67A 15V 1.34A 24V 1A
DIN RAIL type , easy to installation
Model MDR-20-5 MDR-20-12 MDR-20-15 MDR-20-24
DC voltage 5V 12V 15V 24V
output Current range 0~3A 0~1.67A 0~1.34A 0~1A
Rated power 15W 20W 20W 24W
Ripple&noise 80mvp-p 120mvp-p 120mvp-p 150mvp-p
DCvoltage ADJ.range ±10% ±10% ±10% ±10%
Voltage range 85~264VAC,120~370VDC 47-63Hz
Efficiency 76% 80% 81% 84%
Inrush current Cold start current 20A/115VAC, 40A/230VAC
Over load 105% ~160% cut off the output,automatic recovery
Over voltage 120% -140% shut down O/P voltage, re-power on to recover
environment Working temperature -10°C~ 50°C
safety Withstand voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
Isolated resistance I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
others Dimension 22.5*90*100mm (L*W*H)
Weight/packing 0.19kg/90pcs/18kg/45.5*31.5*23cm
Dimension
