Leírás
DHTC12 T/H érzékelő Az I2C kommunikációs nagy pontosságú digitális páratartalom modul helyettesíti a DHT20AM2320

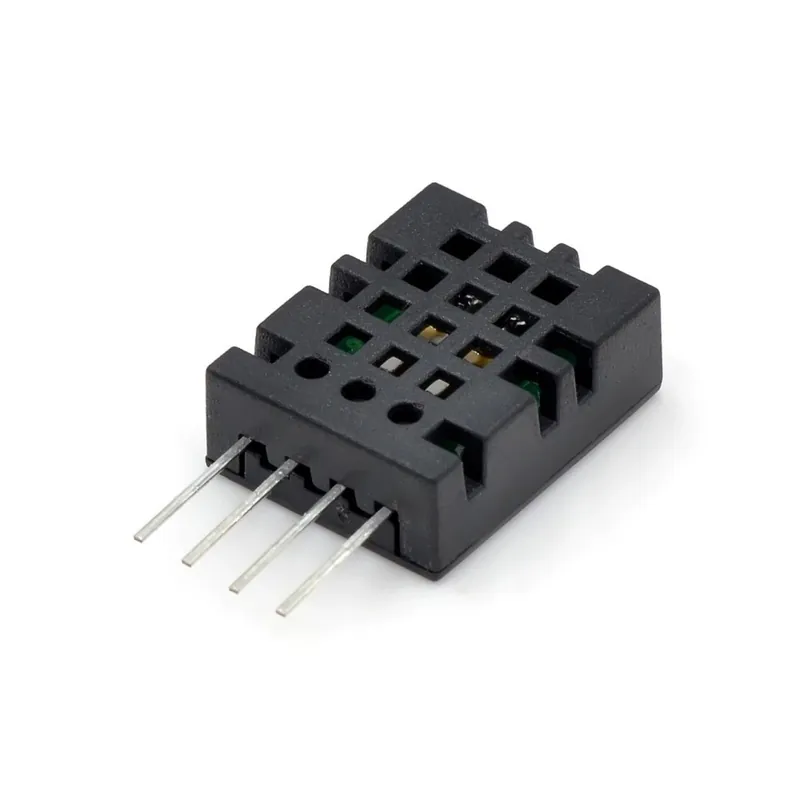

DHTC12 T/H sensor The I2C communications high-precision digital humidity module replaces the DHT20AM2320
Product introduction
This digital temperature and humidity sensor is widely used in HVAC, dehumidifier, test and inspection equipment, consumer goods, automobiles, automatic controls, data recorders, weather stations, household appliances, temperature regulators, medical, and other related temperature detection and control
ABS material, its impact resistance, heat resistance, low temperature resistance, chemical resistance and excellent electrical performance, product size stability, good surface gloss, 4-pin single row pin packaging and connection is convenient, convenient installation
Product parameters
Model: DHTC12
Temperature measurement range: -40℃~80℃
Humidity detection range: 0 to 99.9% RH
Measurement accuracy: ±0.5℃ ±3% RH
Resolution: 0.1℃ 0.1% RH
Response time: 1s
Shell material: ABS material
Communication protocol: IIC
Product size: 12.7mm*5.8mm*23.4mm
