Leírás
A cím elején, valamint az első képen szereplő szín/minta/méret/típus kerül kiszállításra!

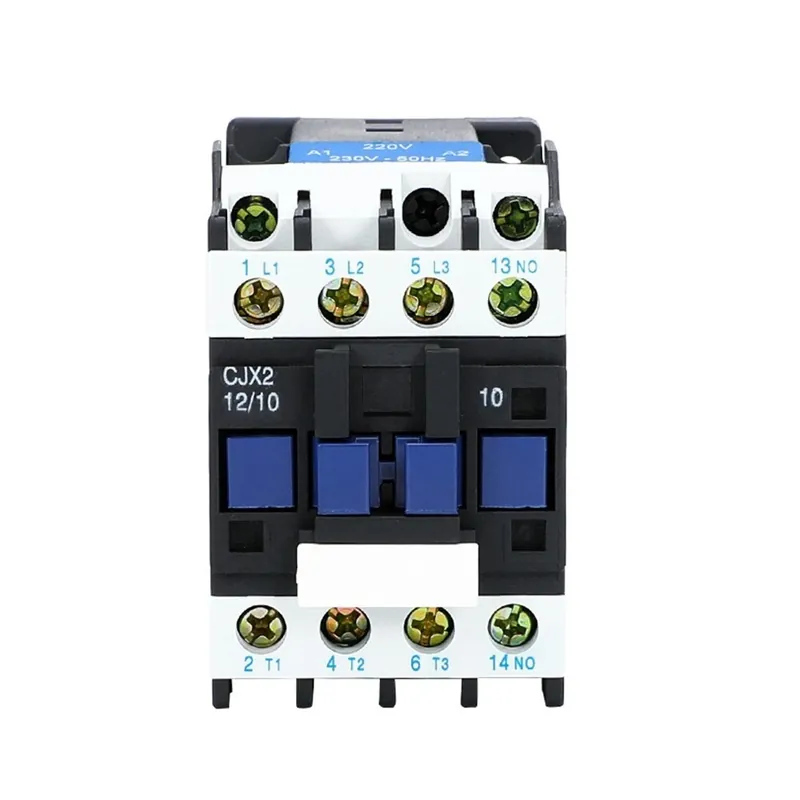

Kontaktor CJX2-1210 12A kapcsolók LC1 AC kontaktor feszültség 380V 220V 110V Használat úszókapcsolóval
Contactor CJX2-1210 12A switches LC1 AC contactor voltage 380V 220V 110V Use with float switch
Specifications:
Product Name AC Contactor
Model Number CJX2-1210
Material Plastic, Metal, Electrical Parts
Rated Operational Current 12A
Rated Coil Voltage 220/230V, 50Hz
Conventional Thermal Current(Ith) 25A
Rated Insulation Voltage(Ui) 690V
AC-3 Rated Voltage(Ue) 220 380 660 V
Rated Operational Current(Ie) 12 12 8.9 A
Controlled Power(Pe) 3 5.5 7.5 KW
Number of Contact 3P NO
Mechanical Life(104) 1000
Overall Size(Approx.) 7.5 x 4.5 x 8cm / 3.0” x 1.8” x 3.1”(L*W*H)
Main Color Black
Package Content 1 x AC Contactor
Descriptions:
AC Contactor is suitable for long-distance making and breaking circuit, frequently starting and controlling the AC motors.
The Rated Voltage of Coil is AC 220V, please pay attention to the voltage to make sure the item can work successfully.
