Leírás

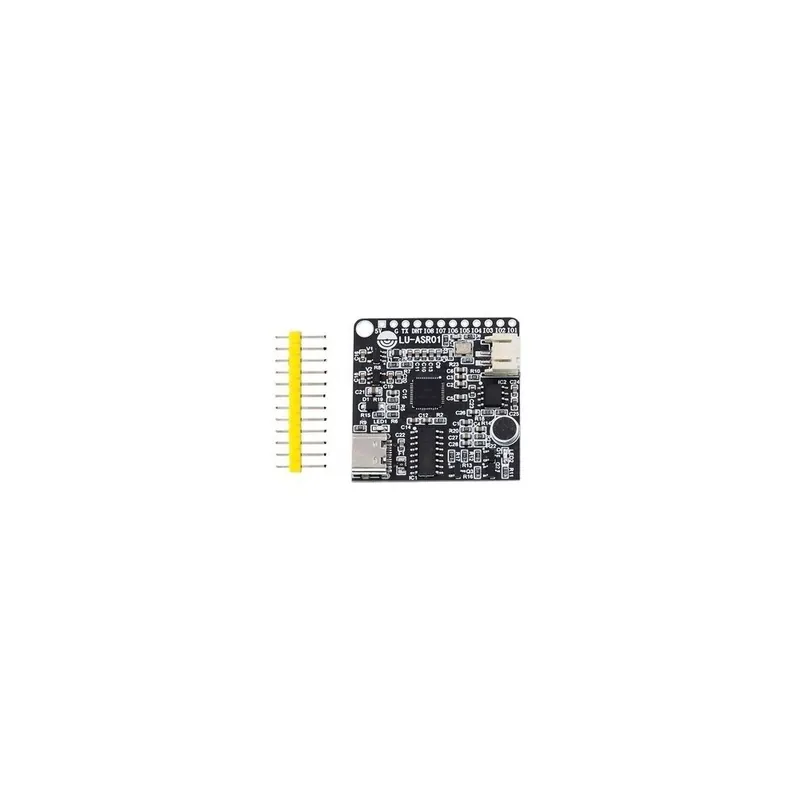

LU-ASR01 Intelligens beszédfelismerő vezérlőmodul, a felhasználó által definiált bejegyzések offline felismerése sokkal több, mint az LD3320
LU-ASR01 Intelligent speech recognition control module offline recognition of user-defined entries far more than LD3320
Lu-asr01 Speech Recognition module
\\ \\
https://pan.baidu.com/s/1JBS0gcGFrp4A5GwyIqkyqg extracted code: JNKW
\\ \\
Use „Tianwen Block” development software to configure the voice entry, 3 minutes to get started!
\\ \\
\\ \\
Lu-asr01 FAQ:
\\ 1. Can I customize wakeup words?
\\ ANSWER: Yes, up to 5 wakeup words can be defined. The wake word should be at least 2 words long.
\\ \\
2. Can I customize voice entry?
\\ ANSWER: Yes, up to 100 words can be customized.
\\ \\
3. What is the recognition rate?
Answer: The recognition rate is very good, 98% within 10 meters.
\\ \\
4. How many IO routes are output?
Answer: the first 6 of 8 IO can be used as PWM or ordinary IO; One serial port output; One DHT11 (DS18B20) interface. If there are many devices, connect them to serial ports.
\\ \\
5. How do I report the current temperature and humidity?
\\ answer: Connect to DHT11 sensor, configure the corresponding identification entry.
\\ \\
6. Need a downloader or compiler?
\\ ANSWER: No, onboard CH340C, USB-to-TTL chip. All you need is a USB cable for one-click download.
