Leírás

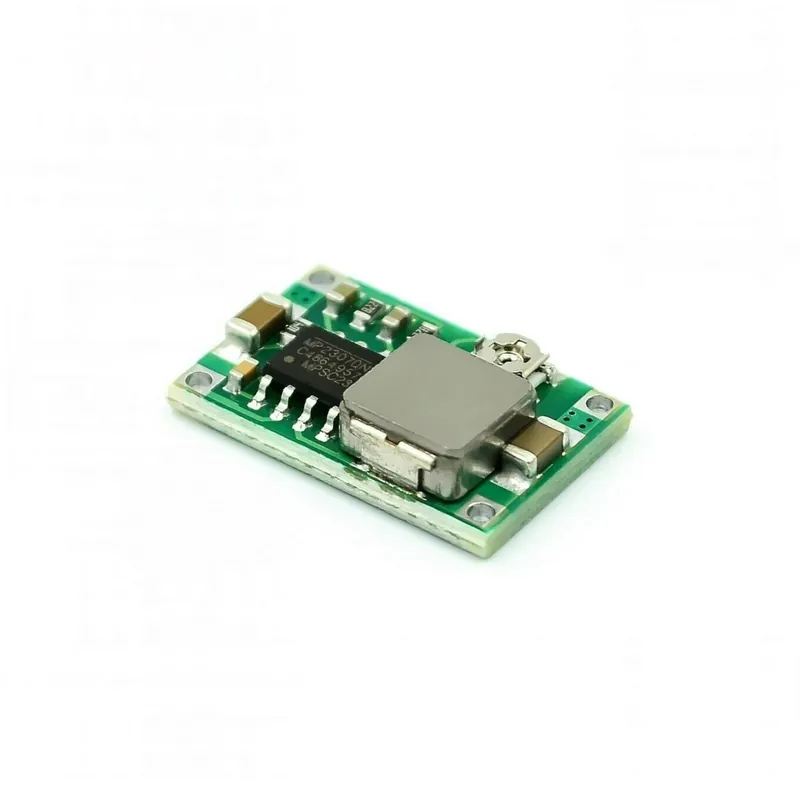

Mini 360 DC-DC Step Down Booster Power Module/Buck Converter – LM2596
High conversion efficiency up to 96%
Adjustable Output
Max output current: 3A
Input range (voltage): 4.75v to 23v
Output range (voltage): 1v to 17v
Mini size at approx 17mm (L) x 11mm (W) x 3.8mm (H)
Adjustable potentiometer
Full Specifications:
Input Voltage: DC 4.75V-23V
Output Voltage: DC 1V-17V
Maximum Peak Output Current: 3A
Maximum Stable Output Current: 1.8A
Maximum Coversion Efficiency: 96%
Maximum Operating Temperature: -40C to ~ +85C
Switching Frequency: 30MHz
Output Ripple: 30mV
Ultra small size DC-DC synchronous rectifier buck module
The input voltage should not exceed the maximum input voltage (23v)
