Leírás
【EGYSZERŰ ROBOT】V-156-1C25 MIKRO KAPCSOLÓS SPDT csuklópántos Görgőkar, 15A

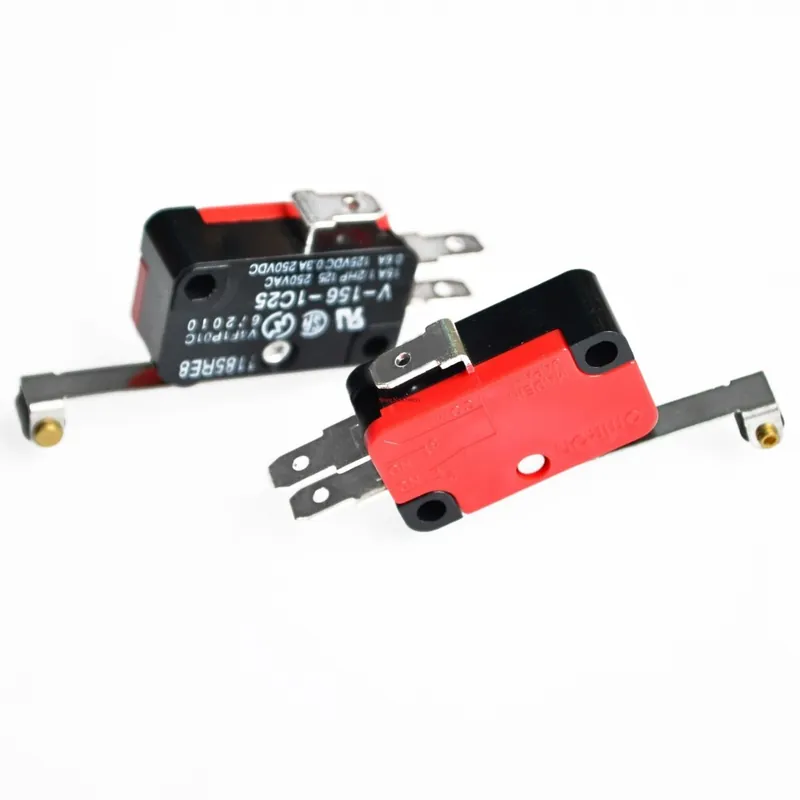

【SIMPLE ROBOT】V-156-1C25 MICRO SWITCH SPDT HINGE ROLLER LEVER 15A
Size: 27.8 x10.3 x15.9 mm
Roller diameter: 4.75mm
Rod length :28 mm
Level: 15 AC250V
Withstand voltage :AC1,0000V 1 min
Insulation resistance :100M O DC500V
Contact resistance :< 100 caps
Welding temperature :250°C maximum 3 seconds.
Ambient temperature :-25℃~ 80℃
Ambient humidity :<85% RH
Mechanical life :5 million cycles
Electrical life :100,000 times
Operation: 160
The component number is HV-156-1C25
