Leírás

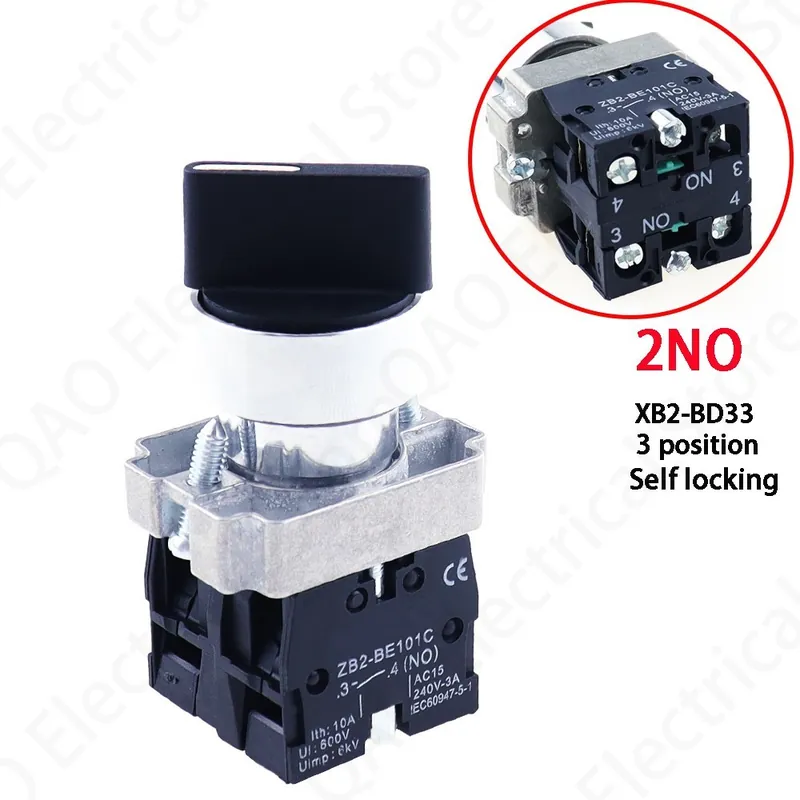

1.XB2 pushbutton switch
1.Basic spec code: 22mm
2.Protection grade: IP40, IP65
3.Electrical durability: 50 x 104
4.CE,CCC certification
2.Application:
XB2 series pushbutton switches are used in industrial controlling circuits of AC 50Hz or 60Hz, rated operational voltage up to 380V and below, DC operational voltage up to 220V and below for controlling in magnetic starter, contactor, relay and other electrical circuits. The buttons with indication conform with the standard of GB14048.5-2001.
3. Technique Parameters
Switch rating
AC-15DC-13220V/0.5A
220V/6A24V/6A440V/0.25A
380V/4A48V/3A.
660V/2A110V/1A.
Contact resistance
Hard silver contacts?550M?
Max.insulation voltage
AC 2500V 50Hz~lmin
Mechanical life
The general button is 1 million times,
500,000 key knobs,
Knobs 500,000 times,
Emergency button ? 500,000 times,
Self-locking button 500,000.
Electrical life
More than 100,000 times(AC220V6A)
Conventional freeair themal current
1th 10A
Rated insulation voltage
ui AC660V
Service temperature
-25°~ + 55°
