Leírás
A cím elején, valamint az első képen szereplő szín/minta/méret/típus kerül kiszállításra!

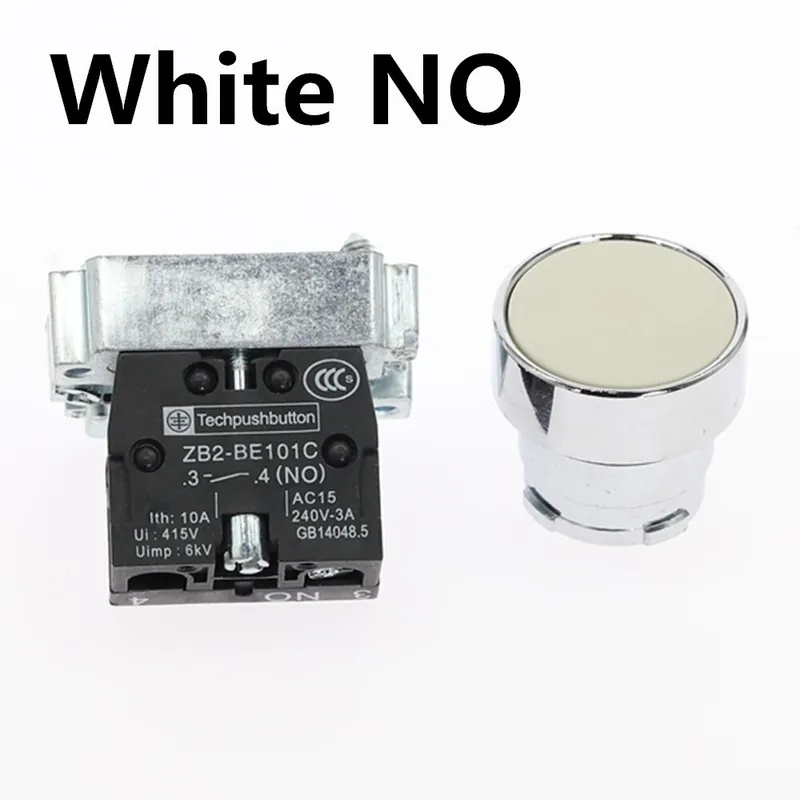

6db Pillanatnyi nyomógombos kapcsoló lámpával 22mm 10A 240V~3A Kör alakú kis méretű Lapos kerek Panel NC/NO XB2-BA31 XB2-BA42
6Pcs Momentary Push button switch with light 22mm 10A 240V~3A Circular small size Flat round Panel NC/NO XB2-BA31 XB2-BA42
RM10757553051204232
37018
Other buttons
Model number and parameters
Model number Head shape Action method Contact form Contact rating Color code Lamp voltage Related product
XB2-BA21 Round Reset (ON)-OFF 3A@240VAC B Order
XB2-BA31 Round Reset (ON)-OFF 3A@240VAC G Order.
XB2-BA3341 Direction Reset (ON)-OFF 3A@240VAC Order
XB2-BA3351 Direction Reset (ON)-OFF 3A@240VAC Order
XB2-BA42 Round Reset ON-(OFF) 3A@240VAC R Order
XB2-BA51 Round Reset (ON)-OFF 3A@240VAC Y Order
XB2-BC31 Mushroom Reset (ON)-OFF 3A@240VAC G Order
XB2-BD21 Turn Self-lock ON-OFF 3A@240VAC Order
XB2-BD23 Turn Self-lock ON-ON 3A@240VAC Order
XB2-BD33 Turn Self-lock ON-OFF-ON 3A@240VAC Order
XB2-BD53 Turn Reset (ON)-OFF-(ON) 3A@240VAC Order
XB2-BG21 Key Self-lock ON-OFF 3A@240VAC Order
XB2-BK3363 Turn Self-lock ON-OFF-ON 3A@240VAC Order
XB2-BL31 High Reset (ON)-OFF 3A@240VAC G Order
XB2-BS542 Emergency stop 3A@240VAC R Order
XB2-BW3361 Round Reset (ON)-OFF 3A@240VAC G 220V, 24V, 12V Order
XB2-BW3462 Round Reset ON-(OFF) 3A@240VAC R 220V, 24V, 12V Order
XB2-BZ3361 XB2-BZ3361 Self-lock ON-OFF 3A@240VAC G 220V, 24V Order
www.finglai.com
General
Model number 22mm XB2-B series
Mounting dimensions 22mm
Dielectric strength 2000Vac, 50Hz for 1min
Mechanical Life 2×105 cycles
Electrical life 5×104 cycles
Matched contact block NO or NC
IP degree IP40
Operation temperature -25 to 55°C
Operation humidity 35 to 85% RH, no-condensation
