Leírás
1/2/3 Gang Wireless Light Switch Smart RF 433Mhz Remote Control 86 Wall Panel Push Button 10A 110V 220V Receiver for LED/Fan
1.Multi switches can control different receivers.Save energy,avoid darkness.
2.Working with all kinds of Lights and Ceiling Fan.LED,CFL,Fluorescent lamp can load 300W,other can load 2500w.
3.It is a 86 wall panel that can be stuck onto anywhere. It is a learning code transmitter EV1527 IC Chip. It can be learned into most of the learning code receiver.
How to get the signal
Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds,
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signal
Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds,

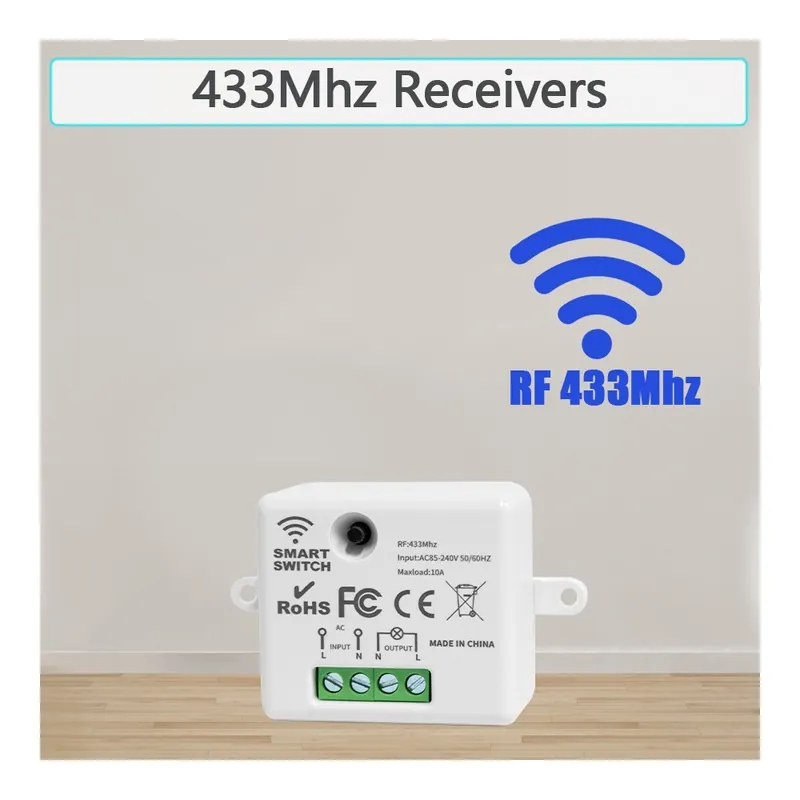

(1) controller (Receiver)
1) Working voltage: AC85-240V 60HZ/50HZ
2) Working frequency: 433MHZ
3) Power consumption in standby mode: <0.3W
4) Load power: <1100W
5) Receiving sensitivity: -108dBM
6) Working way:wireless control
7) Coding way: learning code
8) Modulation: ASK
9) Working temperature: -10*C~+70″C
10) Size: 47.4*42*22.8 (mm)
(2) Wireless Wall Switch
1) working frequency:433MHZ
2) Power consumption in standby mode:<1uA
3) Transmitter power: <10mW
4) Working way: wireless control
5) Coding way: EV1527 learning code
6) Modulation: ASK
7) Working temperature:-10″C~+70*C
8) Size: 86*86* 15mm
