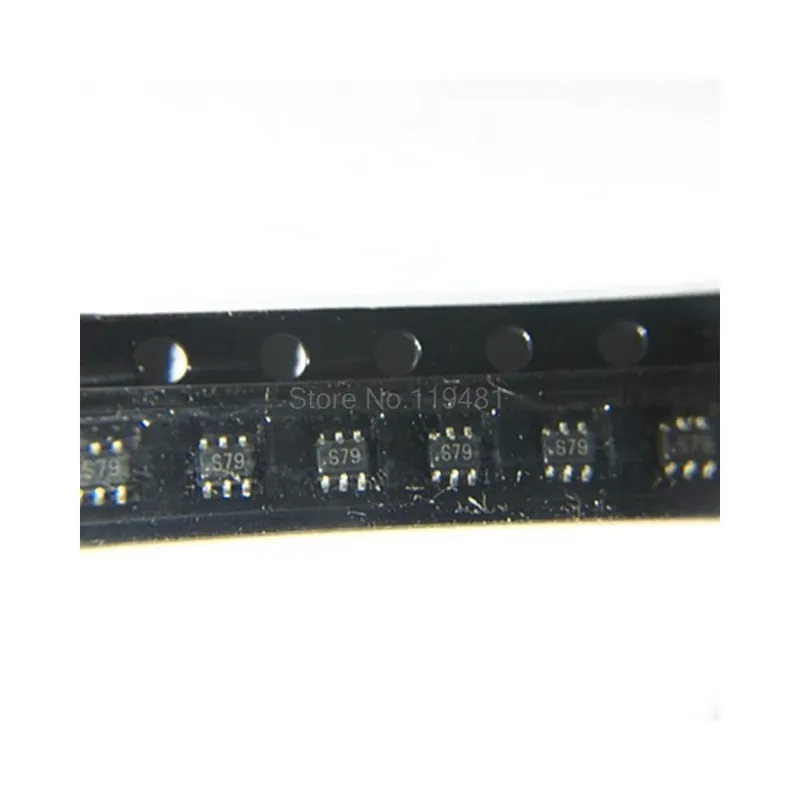

AS179-92LF RF kapcsoló IC 802.11b, g, Bluetooth, WLAN SPDT 3GHz 50 Ohm SC-70-6
AS179-92LF RF Switch IC 802.11b, g, Bluetooth, WLAN SPDT 3GHz 50 Ohm SC-70-6
AS179-92LF RF Switch IC 802.11b, g, Bluetooth, WLAN SPDT 3GHz 50 Ohm SC-70-6
Part Status Active
Frequency – Lower 20MHz
Frequency – Upper 3GHz
Isolation @ Frequency 23dB @ 3GHz (typ)
Insertion Loss @ Frequency 0.4dB @ 3GHz
IIP3 50dBm (typ)
Topology Reflective
Circuit SPDT
P1dB 34dBm (typ) IP1dB
Features –
Impedance 50 Ohm
Operating Temperature -40°C ~ 85°C
Voltage – Supply 3V
RF Type 802.11b, g, Bluetooth, WLAN
Package / Case 6-TSSOP, SC-88, SOT-363
Supplier Device Package SC-70-6
