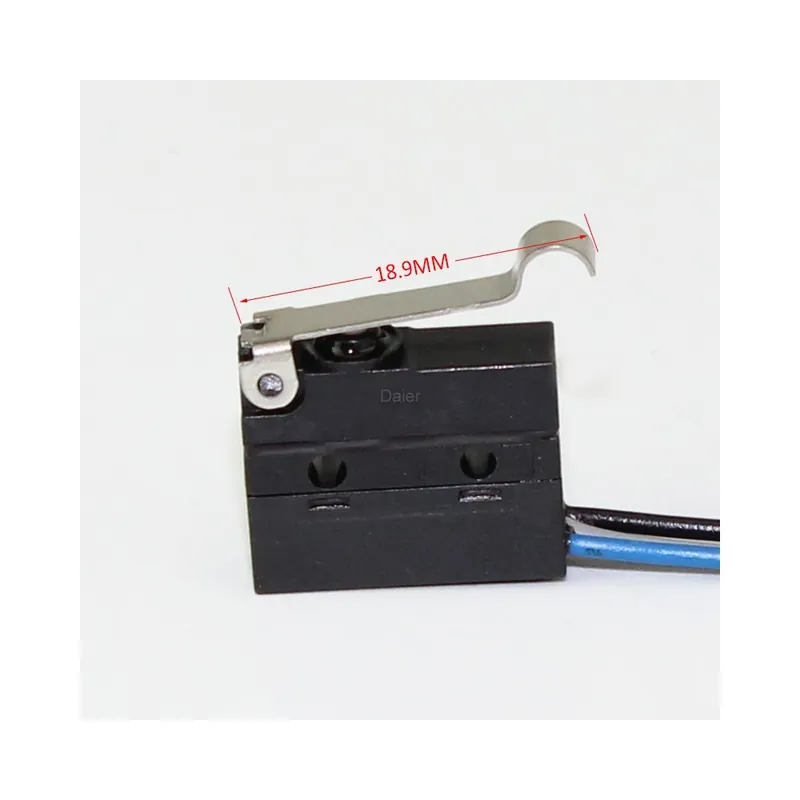

1PC IP67 Waterproof Micro Switch SPDT 20X15X6MM 5A 250VAC Changeover Microswitch ARC Roller Longer Lever With 300MM Wire
Product Name
T85 IP67 SPDT Wire Type Short Lever Micro Switch 5A 250VAC
Rating
5A 250VAC
Connect Forms
SPDTI12V waterproof micro switch
Degree Protection
IP67waterproof micro switch
Terminal Type
Wire Type
Contact Resistance
?100m?
Insulation Resistance
?100M? (500VDC)
Dielectric strength
1500VAC 1 minute
Mechanical Life
? 1,000,000 Cyclesd
This is a waterproof micro switch which have a variety of actuator, like pin plunger, lever, and roller lever.
The degree protection provided by enclosure can be reached IP67.
Electrical ratings from low levels up to 15 Amps, and a broad range of operating forces from 50gf to 400gf.
The micro switch terminal styles include PCB through hole, quick connect, screw and solder.
Mounting options include vertical, right angle, PCB and snap-in mounting.
They are widely used in Home appliance, like test Euqipment, Automotive, Arcade games, Medical Devices and so on.
